Product name: MCI929-QLS Automatic locking screw machine dedicat
Category: ATTONIC Product model: MCI929-QLS
一、Characteristics
It is used to automatically lock the screw machine to lock the product. It is required to test the torque of the screw machine online (set the test procedure and detect the torque without removing the electric batch) to check whether the set torque of the lock screw machine matches the actual lock torque.
● Automatically store 1000 peaks during testing.
At the same time automatically send peaks to the computer or PLC.
● Output the torque setting HI, OK, LO high and low values, Corresponding control signals to the PLC (optional).
● The built-in real-time clock shows real-time time and date.
● Standard USB/RS232C output.
● Small size for easy installation
二、Parameter
型 號 Type | 最大負荷 Max.load | 最小負荷 Min.load | ||||||||
Kgf.cm | N.m | Lbf.in | Kgf.cm | N.m | Lbf.in | |||||
MCI929-QLS-0.1N.m | 1.000 | 0.100 | 0.868 | 0.001 | 0.001 | 0.001 | ||||
MCI929-QLS-1N.m | 10.00 | 1.000 | 8.680 | 0.01 | 0.001 | 0.001 | ||||
MCI929-QLS-10N.m | 100.0 | 10.00 | 86.80 | 0.1 | 0.01 | 0.01 | ||||
MCI929-QLS-30N.m | 300.0 | 30.00 | 260.4 | 0.1 | 0.01 | 0.01 | ||||
MCI929-QLS-50N.m | 500.0 | 50.00 | 434.0 | 0.1 | 0.01 | 0.01 | ||||
MCI929-QLS-100N.m | 1000 | 100.0 | 868.0 | 1 | 0.1 | 0.1 | ||||
精度 Accuracy | ±0.5% | |||||||||

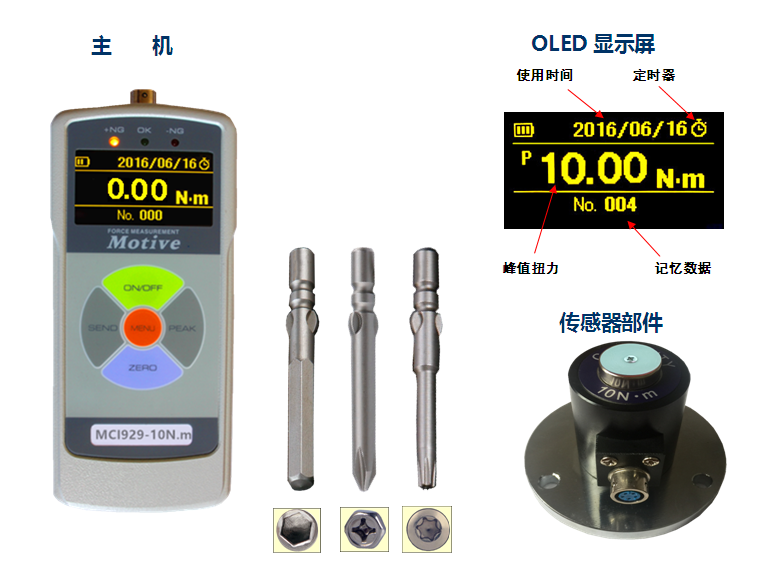

顯 示 Display | 采用高亮OLED顯示屏，超寬視角，信息容量大，中、英、日、韓等8國文字，全球適用。 It adopts high-brightness OLED display, wide viewing angle and large information capacity. It is suitable for Chinese, English, Japanese and Korean. | |||||||||
峰值模式 PEAK | 顯示扭力最大值 The highest value of torque is hold-displayed | |||||||||
跟蹤模式 TRACK | 隨扭力變化實時顯示扭力值 The torque value is shown in real time with the torque change | |||||||||
自動清零時間 Auto Clear Time | 1～60秒自動清零,手動設置清零0.0秒 1to 60 seconds to reset automatically, manually reset 0.0 seconds | |||||||||
自動記憶功能 Automatic memory function | 可以記憶1000個數據 自動存儲數據，同時發送到電腦 Can memorize 1000 data, automatically store data, and send it to the computer at the same time | |||||||||
主機重量 Display Weight | 約600g About 600g | |||||||||
傳感器重量 Sensor Weight | 0.1N.約950g 0.1N.m About 200g | 1N.m約950g 1N.m About 200g | 10N.m約950g 10N.m About 300g | 30N.m約950g 30N.m About 300g | 50N.m約950g 50N.m About 600g | 100N.m約950g 100N.mAbout 950g | ||||
Special specifications can be customized

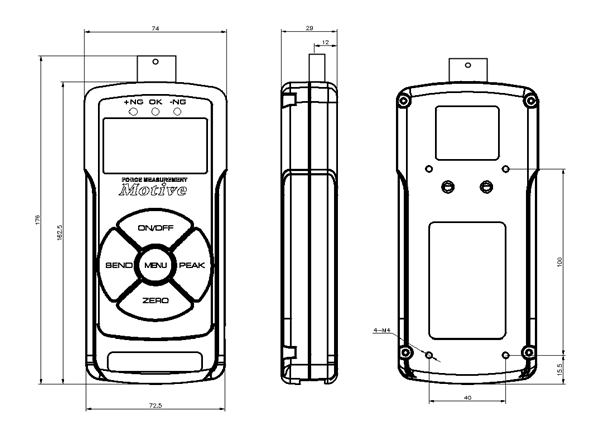

三、Instrument Dimensions

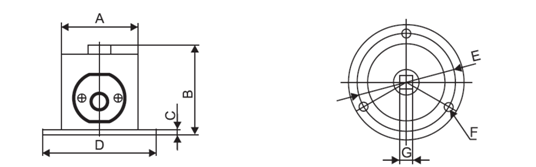

QLS sensor outline drawing
型號 | A | B | C | D | E | F（3等分） | G（方口） |
QLS 0.1-5N.m | Φ30 | 54 | 7.1 | Φ62 | Φ53 | Φ5.6 | 6.3sq 1/4 " |
QLS 10--30N.m | Φ36 | 62 | 8 | Φ74 | Φ62 | Φ6.4 | 9.5sq 3/8 " |
QLS 50N.m | Φ60 | 67 | 10 | Φ110 | Φ90 | Φ8.3 | 9.5sq 3/8 " |
QLS 100N.m | Φ60 | 73 | 10 | Φ110 | Φ90 | Φ8.3 | 12.7sq 1/2 " |
| |||||||
